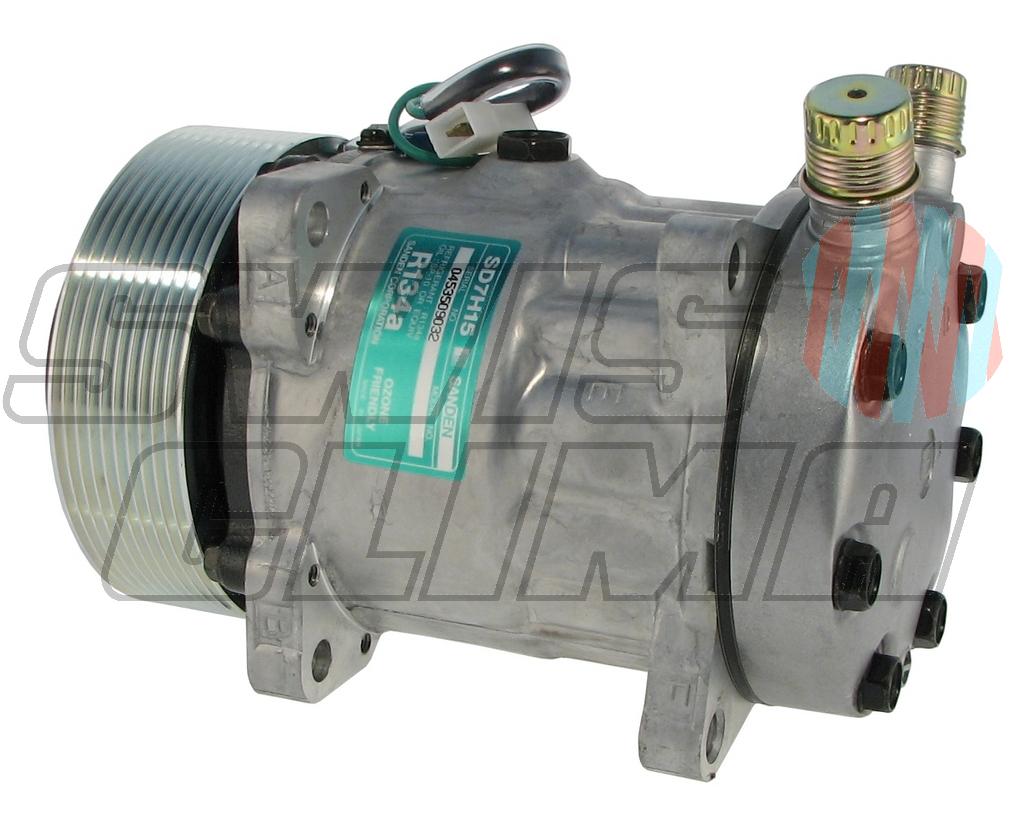

Compressors - . . . SD7H15 - 21-77298
Part number
21-77298
Designation
Sanden . . . SD7H15 Vertical O-ring
Specifications
24V / P10 / 125 mm
Original number
Sanden . . .
Refrigerant
R134a
OEM number
EVOBUS . . . A 000 835 3003
MERCEDES . . . A 000 835 3003
MERCEDES . . . A 000 835 3003
Note
G = 50.80 mm
E = 14.40 mm
M = 83.30 mm
Oil = SP-20
Available on request with Ester oil (POE)
Rotation = CW
Speed STD = 6000 r.p.m. continuous . . . 7000 r.p.m. maximum
Speed HD = 4000 r.p.m. continuous . . . 6000 r.p.m. maximum
Speed SHD = 4000 r.p.m. continuous . . . 4000 r.p.m. maximum
E = 14.40 mm
M = 83.30 mm
Oil = SP-20
Available on request with Ester oil (POE)
Rotation = CW
Speed STD = 6000 r.p.m. continuous . . . 7000 r.p.m. maximum
Speed HD = 4000 r.p.m. continuous . . . 6000 r.p.m. maximum
Speed SHD = 4000 r.p.m. continuous . . . 4000 r.p.m. maximum
Application list
