FORD . . . Transit IV [Mark VIII] . . . (TTG) . . . 08.13 > . . . [E6] 03.16 > >
19 181 722

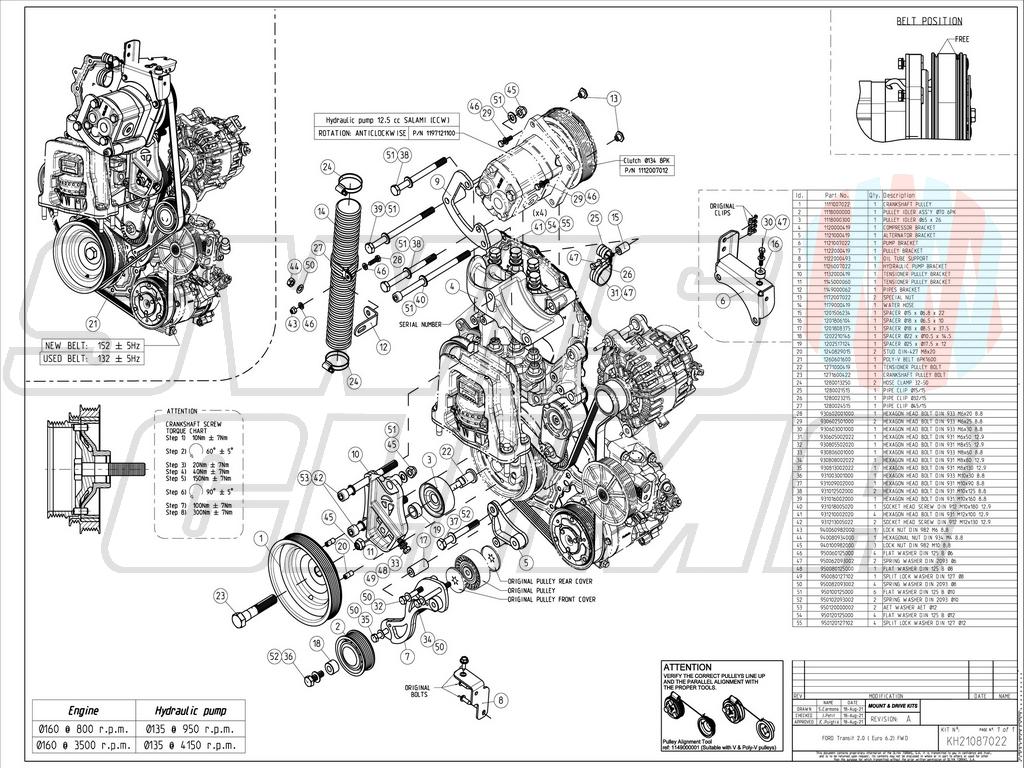

Kit Staffaggi Compressori - FORD . . . Transit IV [Mark VIII] . . . (TTG) . . . 08.13 > . . . [E6] 03.16 > - 19 181 722
Articolo
19 181 722
Designazione
Kit motore per Pompa idraulica
Specificazioni
Numero originale
Oliva Torras . . . KH21087022
Refrigerante
-
Numero OEM
---
Nota
For use with:
Pump . . . 12,7 cc P/N 1197121000 (not included)
Clutch . . . P/N 1112007012 (not included)
Clutch . . . P8 / ø 134 mm
Pump speed . . . 4150 rpm
Pump . . . 12,7 cc P/N 1197121000 (not included)
Clutch . . . P/N 1112007012 (not included)
Clutch . . . P8 / ø 134 mm
Pump speed . . . 4150 rpm
Elenco delle applicazioni
FORD . . . Transit IV [Mark VIII] . . . (TTG) . . . 08.13 > . . . [Euro 6] 03.16 > . . . [Propulsion - RWD - Heckantrieb] & [AWD]
. . . . . . . . . 2.0 TDCi . . . Engine YLR6 [Euro 6] . . . 4 / 1995 cm³ . . . 105 HP . . . 03.16 -
. . . . . . . . . 2.0 TDCi 4x4 . . . Engine YLR6 [Euro 6] . . . 4 / 1995 cm³ . . . 105 HP . . . 01.17 -
. . . . . . . . . 2.0 TDCi . . . Engine YMR6 [Euro 6] . . . 4 / 1995 cm³ . . . 130 HP . . . 03.16 -
. . . . . . . . . 2.0 TDCi 4x4 . . . Engine YMR6 [Euro 6] . . . 4 / 1995 cm³ . . . 130 HP . . . 01.17 -
. . . . . . . . . 2.0 TDCi . . . Engine YNR6 [Euro 6] . . . 4 / 1995 cm³ . . . 170 HP . . . 03.16 -
. . . . . . . . . 2.0 TDCi 4x4 . . . Engine YNR6 [Euro 6] . . . 4 / 1995 cm³ . . . 170 HP . . . 01.17 -
. . . . . . . . . 2.0 TDCi . . . Engine YLF6, YLFS [Euro 6d TEMP] . . . 4 / 1995 cm³ . . . 105 HP . . . 09.19 -
. . . . . . . . . 2.0 TDCi . . . Engine YMF6, YMFS [Euro 6d TEMP] . . . 4 / 1995 cm³ . . . 130 HP . . . 09.19 -
. . . . . . . . . 2.0 TDCi . . . Engine YNF6, YNFS [Euro 6d TEMP] . . . 4 / 1995 cm³ . . . 170 HP . . . 09.19 -
Manual & Automatic gearbox
Tool 1149000422 is needed for installation on manual gearbox
Tool 1150000422 is needed for installation on automatic gearbox
With A/C
FORD . . . Transit IV [Mark VIII] . . . (TTG) . . . 08.13 > . . . [Euro 6] 03.16 > . . . [Propulsion - RWD - Heckantrieb] & [AWD]
. . . . . . . . . 2.0 TDCi . . . Engine YLR6 [Euro 6] . . . 4 / 1995 cm³ . . . 105 HP . . . 03.16 -
. . . . . . . . . 2.0 TDCi 4x4 . . . Engine YLR6 [Euro 6] . . . 4 / 1995 cm³ . . . 105 HP . . . 01.17 -
. . . . . . . . . 2.0 TDCi . . . Engine YMR6 [Euro 6] . . . 4 / 1995 cm³ . . . 130 HP . . . 03.16 -
. . . . . . . . . 2.0 TDCi 4x4 . . . Engine YMR6 [Euro 6] . . . 4 / 1995 cm³ . . . 130 HP . . . 01.17 -
. . . . . . . . . 2.0 TDCi . . . Engine YNR6 [Euro 6] . . . 4 / 1995 cm³ . . . 170 HP . . . 03.16 -
. . . . . . . . . 2.0 TDCi 4x4 . . . Engine YNR6 [Euro 6] . . . 4 / 1995 cm³ . . . 170 HP . . . 01.17 -
. . . . . . . . . 2.0 TDCi . . . Engine YLF6, YLFS [Euro 6d TEMP] . . . 4 / 1995 cm³ . . . 105 HP . . . 09.19 -
. . . . . . . . . 2.0 TDCi . . . Engine YMF6, YMFS [Euro 6d TEMP] . . . 4 / 1995 cm³ . . . 130 HP . . . 09.19 -
. . . . . . . . . 2.0 TDCi . . . Engine YNF6, YNFS [Euro 6d TEMP] . . . 4 / 1995 cm³ . . . 170 HP . . . 09.19 -
Manual & Automatic gearbox
Tool 1149000422 is needed for installation on manual gearbox
Tool 1150000422 is needed for installation on automatic gearbox
With A/C
